--- title: "Mobile Manipulation" date: 2024-12-12T09:00:00+00:00 description: Final Project for ME449 - Robotic Manipulation hero: images/kuka_youbot.jpg author: image: /images/sharwin_portrait.jpg menu: sidebar: name: Mobile Manipulation identifier: mobile-manipulation weight: 3 tags: ["Python", "CoppeliaSim", "Odometry", "Omnidirectional Robot Kinematics"] repo: https://github.com/Sharwin24/Mobile-Manipulation # categories: ["Basic"] --- This project incorporates several robotics concepts to perform a pick and place task in simulation using a mecanum-wheeled mobile robot with a 5 degree-of-freedom robot arm.

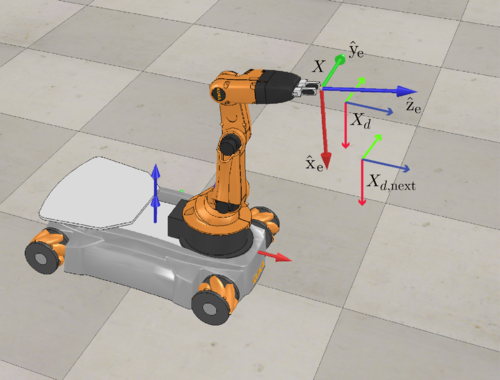

Robot
## Omnidirectional Mobile Base Kinematics (Mecanum Wheels) This robot uses mecanum wheels, which are omnidirectional wheels with 45-degree rollers that allow the robot to move in any direction without changing its orientation. When controlling the robot, we command the wheel velocities, which can be described by the following equation:
\[ u_i=\frac{1}{r_i}\overbrace{\begin{bmatrix}1 & \tan\gamma_i\end{bmatrix}}^{\text{driving direction}} \underbrace{\begin{bmatrix}\cos\beta_i & \sin\beta_i \\ -\sin\beta_i & \cos\beta_i\end{bmatrix}}_{\text{linear velocity in wheel frame}} \overbrace{\begin{bmatrix}-y_i & 1 & 0 \\ x_i & 0 & 1\end{bmatrix}}^{\text{linear velocity in body frame}} V_b \]
where: - \\(u_i\\) is the wheel velocity - \\(r_i\\) is the wheel radius - \\(\gamma_i\\) is the angle of the roller relative to the wheel's driving direction - \\(\beta_i\\) is the angle of the wheel relative to the body frame - \\(x_i\\) and \\(y_i\\) are the x and y coordinates of the wheel relative to the body frame's origin - \\(V_b\\) is the robot's 3D body twist, composed of the linear and angular velocity: \\([v_x, v_y, \omega]\\)
Mecanum Base
## Trajectory Generation There were two components to the trajectory generation: 1. End-Effector Reference Trajectory: Generating a desired end-effector trajectory for the robot to follow. 2. Time allocation: Generating the time and number of simulation steps per trajectory segment based on the desired end-effector trajectory. These were accomplished using the trajectory generation functions provided by the `modern_robotics` library after splitting the sequence into 8 separate segments.
Trajectory Generation Python Function ```python dt = 0.01 # [s] total_time = 10 # [s] traj_1_time = 0.21 * total_time # Initial -> Pick_Standoff traj_2_time = 0.01 * total_time # Pick_Standoff -> Cube_Initial traj_3_time = 0.07 * total_time # Cube_Initial -> Gripper Closed traj_4_time = 0.21 * total_time # Gripper Closed -> Pick_Standoff traj_5_time = 0.21 * total_time # Pick_Standoff -> Place_Standoff traj_6_time = 0.01 * total_time # Place_Standoff -> Cube_Final traj_7_time = 0.07 * total_time # Cube_Final -> Gripper Open traj_8_time = 0.21 * total_time # Gripper Open -> Place_Standoff trajectory_time = np.array([ traj_1_time, traj_2_time, traj_3_time, traj_4_time, traj_5_time, traj_6_time, traj_7_time, traj_8_time ]) # steps per trajectory segment # traj_steps = int(total_time * num_reference_configs / dt) traj_steps = [ int(t * num_reference_configs / dt) for t in trajectory_time ] # Apply transformations for the waypoints we'll need pick_standoff_config = cube_initial_config @ standoff_config place_standoff_config = cube_final_config @ standoff_config pick_grasp_config = cube_initial_config @ ee_grasping_config place_grasp_config = cube_final_config @ ee_grasping_config # Gripper states for the trajectory gripper_states = [] # Trajectory 1: Initial -> Pick_Standoff (Screw Trajectory) gripper_states.extend([0] * traj_steps[0]) traj_1 = mr.ScrewTrajectory( ee_initial_config, pick_standoff_config, trajectory_time[0], traj_steps[0], method=3 ) # Trajectory 2: Pick_Standoff -> Cube_Initial (Cartesian Trajectory) gripper_states.extend([0] * traj_steps[1]) traj_2 = mr.CartesianTrajectory( pick_standoff_config, pick_grasp_config, trajectory_time[1], traj_steps[1], method=3 ) # Trajectory 3: Cube_Initial -> Gripper Closed gripper_states.extend([1] * traj_steps[2]) traj_3 = mr.ScrewTrajectory( pick_grasp_config, pick_grasp_config, trajectory_time[2], traj_steps[2], method=3 ) # Trajectory 4: Gripper Closed -> Pick_Standoff (Cartesian Trajectory) gripper_states.extend([1] * traj_steps[3]) traj_4 = mr.CartesianTrajectory( pick_grasp_config, pick_standoff_config, trajectory_time[3], traj_steps[3], method=3 ) # Trajectory 5: Pick_Standoff -> Place_Standoff (Screw Trajectory) gripper_states.extend([1] * traj_steps[4]) traj_5 = mr.ScrewTrajectory( pick_standoff_config, place_standoff_config, trajectory_time[4], traj_steps[4], method=3 ) # Trajectory 6: Place_Standoff -> Cube_Final (Cartesian Trajectory) gripper_states.extend([1] * traj_steps[5]) traj_6 = mr.CartesianTrajectory( place_standoff_config, place_grasp_config, trajectory_time[5], traj_steps[5], method=3 ) # Trajectory 7: Cube_Final -> Gripper Open gripper_states.extend([0] * traj_steps[6]) traj_7 = mr.ScrewTrajectory( place_grasp_config, place_grasp_config, trajectory_time[6], traj_steps[6], method=3 ) # Trajectory 8: Gripper Open -> Place_Standoff gripper_states.extend([0] * traj_steps[7]) traj_8 = mr.CartesianTrajectory( place_grasp_config, place_standoff_config, trajectory_time[7], traj_steps[7], method=3 ) trajectory = np.concatenate( (traj_1, traj_2, traj_3, traj_4, traj_5, traj_6, traj_7, traj_8), axis=0 ) ```
## Odometry Odometry is the process of estimating the mobile robot's pose by integrating the wheel velocities. The robot's pose is represented by the chassis configuration \\([\phi, x, y]\\), where \\(\phi\\) is the orientation and \\(x, y\\) are the position in the world frame. We can compute the body twist \\(V_b\\) using the wheel velocities \\(\dot{\theta}\\), the timestep \\(\Delta t\\), and the chassis configuration \\( F=pinv(H(0))\\):
\[ \dot{\theta} = \Delta\theta / \Delta t \\\ V_b = \underbrace{H(0)^{\dagger}}_{F} \cdot \dot{\theta} \]
The body twist \\(V_b\\) can be integrated to get the displacement \\(T_{bk} = exp([V_b])\\), which is then applied to the chassis configuration to get the new pose. The odometry function computes the new chassis configuration based on the difference between the current and previous wheel configurations assuming a constant velocity between the two wheel configurations \\((\Delta t = 1)\\).
Odometry Python Function ```python def odometry(chassis_config: np.array, delta_wheel_config: np.array) -> np.array: """ Using Odometry, a new chassis configuration is computed based on the difference between the current and the previous wheel configuration. Args: chassis_config (np.array): The current chassis configuration [phi, x, y] delta_wheel_config (np.array): The difference in wheel configuration Returns: np.array: The new chassis configuration [phi, x, y] """ phi, x, y = chassis_config # delta_theta is the difference in wheel angles # Since we are assuming constant wheel speeds, dt = 1 dt = 1 # Use actual timestep between wheel displacements for non-constant speeds theta_dot = delta_wheel_config / dt # Calculate the Body twist using the pinv(H0) and theta_dot V_b = RC.F @ theta_dot # Integrate to get the displacement: T_bk = exp([V_b6]) V_b6 = np.array([0, 0, *V_b, 0]) T_bk = mr.MatrixExp6(mr.VecTose3(V_b6)) T_sk = RC.T_sb(phi, x, y) @ T_bk new_phi = np.arctan2(T_sk[1, 0], T_sk[0, 0]) new_chassis_config = np.array([ new_phi, T_sk[0, 3], T_sk[1, 3] ]) return new_chassis_config ```
## Task-Space Feedforward & Feedback Control To perform the pick and place task, we need to implement a control law that can track a desired end-effector trajectory. The control law is given by:
\[ V_e(t) = \overbrace{[Ad_{X^{-1}X_d}]V_d(t)}^{\text{Feedforward}} + K_pX_{err}(t) + K_i \int X_{err}(t) \]
where: - \\(V_e(t)\\) is the error twist required to track the desired trajectory - \\(X\\) is the current end-effector configuration - \\(X_d\\) is the desired end-effector configuration - \\(V_d(t)\\) is the desired end-effector twist - \\(K_p\\) is the proportional gain matrix - \\(K_i\\) is the integral gain matrix - \\(X_{err}(t)\\) is the error between the current and desired end-effector configurations
Feedback Control Python Function ```python def feedback_control(X, Xd, Xd_next, Kp, Ki, control_type: str = 'FF+PI', dt: float = 0.01) -> tuple: """ Calculate the kinematic task-space feedforward plus feedback control law. V(t) = [Adjoint(inv(X)*Xd)]V_d(t) + Kp*X_err(t) + Ki*integral(X_err(t)) Args: X (np.array): The current actual end-effector configuration (T_se) Xd (np.array): The current end-effector reference configuration (T_se,d) Xd_next (np.array): The end-effector reference configuration at the next timestep in the reference trajectory Kp (np.array): The Proportional gain matrix Ki (np.array): The Integral gain matrix control_type (str, optional): The type of simulation. Defaults to 'FF+PI'. ['FF+PI', 'P', 'PI'] dt (float, optional): The timestep between reference trajectory configs. Defaults to 0.01. Returns: tuple: A tuple containing the twist V and the error X_err """ X_err = mr.se3ToVec(mr.MatrixLog6(mr.TransInv(X) @ Xd)) Vd = mr.se3ToVec((1/dt) * mr.MatrixLog6(mr.TransInv(Xd) @ Xd_next)) if control_type == 'FF+PI': V = mr.Adjoint(mr.TransInv(X) @ Xd) @ Vd + (Kp @ X_err) + (Ki @ (X_err * dt)) elif control_type == 'P': V = (Kp @ X_err) elif control_type == 'PI': V = (Kp @ X_err) + (Ki @ (X_err * dt)) else: print(f'Invalid sim_type: {control_type}, using FF+PI') V = mr.Adjoint(mr.TransInv(X) @ Xd) @ Vd + (Kp @ X_err) + (Ki @ (X_err * dt)) return V, X_err ```
## Singularity Avoidance During trajectory generation/planning, there are desired configurations that can bring the robot arm close to singularities in the robot's configuration space. To avoid any singularities, whenever the joint speeds are computed for the configuration at the next timestep, If the movement sends a joint past its limit, the column corresponding to that joint is set to zero within the Jacobian when computing the joint speeds to avoid using that joint to acheive the desired configuration. ```python class RobotConstants: @property def F(self) -> np.array: """F = pinv(H0)""" R = self.R L = self.L W = self.W return (R / 4) * np.array([ [-1 / (L + W), 1/(L + W), 1/(L + W), -1/(L + W)], [1, 1, 1, 1], [-1, 1, -1, 1] ]) def Je(self, arm_thetas: np.array, violated_joints: list[int] = []) -> np.array: """ Compute the Mobile Manipulator Jacobian given the arm joint angles and the list of joints that break joint limits. Args: arm_thetas (np.array): The arm joint angles [rad] violated_joints (list[int], optional): List of joints by ID that are out of joint limits. Defaults to []. Returns: np.array: The Mobile Manipulator Jacobian (6x9) """ # 6x5 Jacobian Matrix for the arm J_arm = mr.JacobianBody(self.B, arm_thetas) # If any joints are violated, set the corresponding column to 0 for j in violated_joints: J_arm[:, j] = 0 # 6x4 Jacobian Matrix for the base F_6 = np.array([ np.zeros(4), np.zeros(4), self.F[0], self.F[1], self.F[2], np.zeros(4) ]) # J_base = [Adjoint(inv(T_0e) * inv(T_b0))] * F_6 J_base = mr.Adjoint( mr.TransInv(self.T_0e(arm_thetas)) @ mr.TransInv(self.T_b0) ) @ F_6 # Mobile Manipulator Jacobian Je = np.hstack((J_base, J_arm)) return Je ```
