Forward and Inverse Kinematics C++ Implementation as ROS services

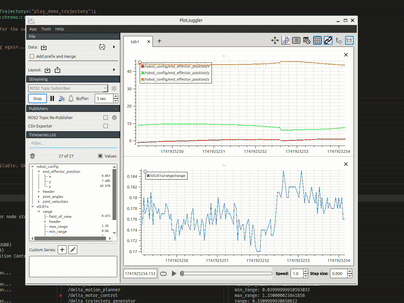

```cpp // this->AL = Active Link Length [mm] // this->PL = Passive Link Length [mm] // this->SB = Base Side Length [mm] // this->SP = Platform (EE) Side Length [mm] const float sqrt3 = sqrt(3.0); const float sin120 = sqrt3 / 2.0; constexpr float cos120 = -0.5; const float tan60 = sqrt3; constexpr float sin30 = 0.5; const float tan30 = 1 / sqrt3; void DeltaKinematics::forwardKinematics(const std::shared_ptr request, std::shared_ptr response) { // Locally save the request data (joint angles) float theta1 = request->joint_angles.theta1; float theta2 = request->joint_angles.theta2; float theta3 = request->joint_angles.theta3; float x = 0.0; float y = 0.0; float z = 0.0; float t = (this->SB - this->SP) * tan30 / 2; float y1 = -(t + this->AL * cos(theta1)); float z1 = -this->AL * sin(theta1); float y2 = (t + this->AL * cos(theta2)) * sin30; float x2 = y2 * tan60; float z2 = -this->AL * sin(theta2); float y3 = (t + this->AL * cos(theta3)) * sin30; float x3 = -y3 * tan60; float z3 = -this->AL * sin(theta3); float dnm = (y2 - y1) * x3 - (y3 - y1) * x2; float w1 = y1 * y1 + z1 * z1; float w2 = x2 * x2 + y2 * y2 + z2 * z2; float w3 = x3 * x3 + y3 * y3 + z3 * z3; // x = (a1*z + b1)/dnm float a1 = (z2 - z1) * (y3 - y1) - (z3 - z1) * (y2 - y1); float b1 = -((w2 - w1) * (y3 - y1) - (w3 - w1) * (y2 - y1)) / 2.0; // y = (a2*z + b2)/dnm; float a2 = -(z2 - z1) * x3 + (z3 - z1) * x2; float b2 = ((w2 - w1) * x3 - (w3 - w1) * x2) / 2.0; // a*z^2 + b*z + c = 0 float a = a1 * a1 + a2 * a2 + dnm * dnm; float b = 2 * (a1 * b1 + a2 * (b2 - y1 * dnm) - z1 * dnm * dnm); float c = (b2 - y1 * dnm) * (b2 - y1 * dnm) + b1 * b1 + dnm * dnm * (z1 * z1 - this->PL * this->PL); // discriminant float d = b * b - (float)4.0 * a * c; if (d < 0) { RCLCPP_ERROR(this->get_logger(), "DeltaFK: Invalid Configuration (%f, %f, %f) [rad]", theta1, theta2, theta3); } else { z = (-b + sqrt(d)) / (2*a); x = (a1 * z + b1) / dnm; y = (a2 * z + b2) / dnm; } // Update the response data (end effector position) response->x = x; // [mm] response->y = y; // [mm] response->z = z; // [mm] } int DeltaKinematics::deltaFK_AngleYZ(float x0, float y0, float z0, float& theta) { float y1 = -0.5 * tan30 * this->SB; // Half base * tan(30) y0 -= 0.5 * tan30 * this->SP; // shift center to edge // z = a + b*y float a = (x0 * x0 + y0 * y0 + z0 * z0 + this->AL * this->AL - this->PL * this->PL - y1 * y1) / (2 * z0); float b = (y1 - y0) / z0; // discriminant float d = -(a + b * y1) * (a + b * y1) + this->AL * (b * b * this->AL + this->AL); if (d < 0) return -1; // non-existing point float yj = (y1 - a * b - sqrt(d)) / (b * b + 1); // choosing outer point float zj = a + b * yj; theta = atan(-zj / (y1 - yj)) + ((yj > y1) ? M_PI : 0.0); return 0; } void DeltaKinematics::inverseKinematics(const std::shared_ptr request, std::shared_ptr response) { // Locally save the request data (end effector position) float x = request->x; // [mm] float y = request->y; // [mm] float z = request->z; // [mm] float theta1 = 0.0; float theta2 = 0.0; float theta3 = 0.0; int status = this->deltaFK_AngleYZ(x, y, z, theta1); if (status == 0) { status = this->deltaFK_AngleYZ(x * cos120 + y * sin120, y * cos120 - x * sin120, z, theta2); // rotate coords to +120 deg } else { RCLCPP_ERROR(this->get_logger(), "DeltaIK: Non-existing point (%f, %f, %f) [mm]", x, y, z); } if (status == 0) { status = this->deltaFK_AngleYZ(x * cos120 - y * sin120, y * cos120 + x * sin120, z, theta3); // rotate coords to -120 deg } else { RCLCPP_ERROR(this->get_logger(), "DeltaIK: Non-existing point (%f, %f, %f) [mm]", x, y, z); } // Update the response data (joint angles) response->joint_angles.theta1 = theta1; // [rad] response->joint_angles.theta2 = theta2; // [rad] response->joint_angles.theta3 = theta3; // [rad] } ```

Jacobian ROS C++ Implementation

```cpp std::pair, std::vector> DeltaKinematics::calcAuxAngles(double theta1, double theta2, double theta3) { // First determine the end effector position using FK Point position = this->deltaFK(theta1, theta2, theta3); const double UP = (sqrt3 / 3) * this->SP; const Eigen::Vector3d P = {position.x, position.y, position.z}; const Eigen::Vector3d D = {UP - this->AL, 0, 0}; Eigen::Matrix3d C; for (int i = 0; i < 3; ++i) { double phi_i = this->phi[i]; Eigen::Matrix3d R; R << std::cos(phi_i), std::sin(phi_i), 0, -std::sin(phi_i), std::cos(phi_i), 0, 0, 0, 1; Eigen::Vector3d c_i = R * P + D; // Set the i-th column of C to c_i. C.col(i) = c_i; } double C_x2 = C(0, 1); double C_y2 = C(1, 1); double C_z2 = C(2, 1); double C_x3 = C(0, 2); double C_y3 = C(1, 2); double C_z3 = C(2, 2); // C_squared = c_xi^2 + c_yi^2 + c_zi^2 double C_sqrd_2 = C_x2 * C_x2 + C_y2 * C_y2 + C_z2 * C_z2; double C_sqrd_3 = C_x3 * C_x3 + C_y3 * C_y3 + C_z3 * C_z3; // theta_3i = arccos(C_yi / PL) double t32 = acos(C_y2 / this->PL); double t33 = acos(C_y3 / this->PL); // k_numerator = c_xi ^ 2 + c_yi ^ 2 + c_zi ^ 2 - L ^ 2 - ELL ^ 2 // k_denominator = 2 * L * ELL * sin(theta_3i) // theta_2i = arccos(k_numerator / k_denominator) double t22_numerator = C_sqrd_2 - this->AL * this->AL - this->PL * this->PL; double t22_denominator = 2 * this->AL * this->PL * sin(t32); double t23_numerator = C_sqrd_3 - this->AL * this->AL - this->PL * this->PL; double t23_denominator = 2 * this->AL * this->PL * sin(t33); double t22 = acos(t22_numerator / t22_denominator); double t23 = acos(t23_numerator / t23_denominator); // theta_1i is the actuated angles which were passed into the function // We only need to return the auxiliary angles return std::make_pair(std::vector{theta2, t22, t23}, std::vector{theta3, t32, t33}); } Eigen::Matrix3d DeltaKinematics::calcJacobian(double theta1, double theta2, double theta3) { // The Jacobian matrix has 2 components: JTheta and Jp // Since this Jacobian will be used to compute the joint velocities, we need the inverse of JTheta // Jp * p_dot = JTheta * theta_dot -> theta_dot = JTheta_inv * Jp * p_dot // Obtain auxiliary angles auto aux_angles = this->calcAuxAngles(theta1, theta2, theta3); const std::vector t1 = {theta1, theta2, theta3}; const std::vector t2 = aux_angles.first; const std::vector t3 = aux_angles.second; double t22 = t2[1]; double t23 = t2[2]; double t32 = t3[1]; double t33 = t3[2]; // Jp Calculation auto J_ix = [this, &t1, &t2, &t3](int i) -> double { return sin(t3[i]) * cos(t2[i] + t1[i]) * cos(this->phi[i]) + cos(t3[i]) * sin(this->phi[i]); }; auto J_iy = [this, &t1, &t2, &t3](int i) -> double { return -sin(t3[i]) * cos(t2[i] + t1[i]) * sin(this->phi[i]) + cos(t3[i]) * cos(this->phi[i]); }; auto J_iz = [this, &t1, &t2, &t3](int i) -> double { return sin(t3[i]) * sin(t2[i] + t1[i]); }; Eigen::Matrix3d Jp; for (int i = 0; i < 3; ++i) { Jp(i, 0) = J_ix(i); Jp(i, 1) = J_iy(i); Jp(i, 2) = J_iz(i); } // JTheta Calculation Eigen::Matrix3d JTheta; // Populate the diagonals with AL*sin(t2[i])*sin(t3[i]) JTheta(0, 0) = this->AL * sin(theta2) * sin(theta3); JTheta(1, 1) = this->AL * sin(t22) * sin(t23); JTheta(2, 2) = this->AL * sin(t32) * sin(t33); // Invert JTheta Eigen::Matrix3d JTheta_inv = JTheta.inverse(); return JTheta_inv * Jp; } DeltaJointVels DeltaKinematics::calcThetaDot(double theta1, double theta2, double theta3, double x_dot, double y_dot, double z_dot) { Eigen::Matrix3d J = this->calcJacobian(theta1, theta2, theta3); Eigen::Vector3d p_dot(x_dot, y_dot, z_dot); Eigen::Vector3d theta_dot = J * p_dot; DeltaJointVels joint_vels; joint_vels.theta1_vel = theta_dot(0); joint_vels.theta2_vel = theta_dot(1); joint_vels.theta3_vel = theta_dot(2); return joint_vels; } std::vector DeltaKinematics::computeGradient(const std::vector& position_data, double dt) { size_t n = position_data.size(); std::vector velocities(n, {0.0, 0.0, 0.0}); if (n == 0 || n == 1) return velocities; // Use forward difference for the first point velocities[0].x_vel = (position_data[1].x - position_data[0].x) / dt; velocities[0].y_vel = (position_data[1].y - position_data[0].y) / dt; velocities[0].z_vel = (position_data[1].z - position_data[0].z) / dt; // Use central difference for interior points for (size_t i = 1; i < n - 1; ++i) { velocities[i].x_vel = (position_data[i + 1].x - position_data[i - 1].x) / (2 * dt); velocities[i].y_vel = (position_data[i + 1].y - position_data[i - 1].y) / (2 * dt); velocities[i].z_vel = (position_data[i + 1].z - position_data[i - 1].z) / (2 * dt); } // Use backward difference for the last point velocities[n - 1].x_vel = (position_data[n - 1].x - position_data[n - 2].x) / dt; velocities[n - 1].y_vel = (position_data[n - 1].y - position_data[n - 2].y) / dt; velocities[n - 1].z_vel = (position_data[n - 1].z - position_data[n - 2].z) / dt; return velocities; } ```
